Operating System Profiles

In Sunstone you can quickly flavor a VM template by using an Operating System Profile, which will pre-fill part of the template for you. By default, Sunstone ships with a “Windows Optimized” profile which contains some basic Windows-specific optimization settings.

Defining a Profile

Navigate to the profiles directory:

By default found in etc/one/fireedge/sunstone/profiles.
Create a new YAML file:

Name your profile by defining a new .yaml file

Note

The filename is used to identify the profile in Sunstone. The filename is sentence-cased and all _ characters are displayed as spaces. For example, windows_optimized.yaml becomes Windows Optimized.
Configure the profile:

Define the profile according to the Operating System Profiles schema.

Important

All values are case sensitive

Here’s an example of a profile that fills in the name of the VM template, the CPU & memory configuration, and sets up the backup strategy.
```
---
# basic_profile.yaml
"General":
  NAME: "Example profile"
  CPU: 4
  VCPU: 4
  MEMORY: 8
  MEMORYUNIT: "GB"

"Advanced options":
  Backup:
    BACKUP_CONFIG:
     MODE: "INCREMENT"
     INCREMENT_MODE: "CBT"
     BACKUP_VOLATILE: "Yes"
     FS_FREEZE: "AGENT"
     KEEP_LAST: 7
```

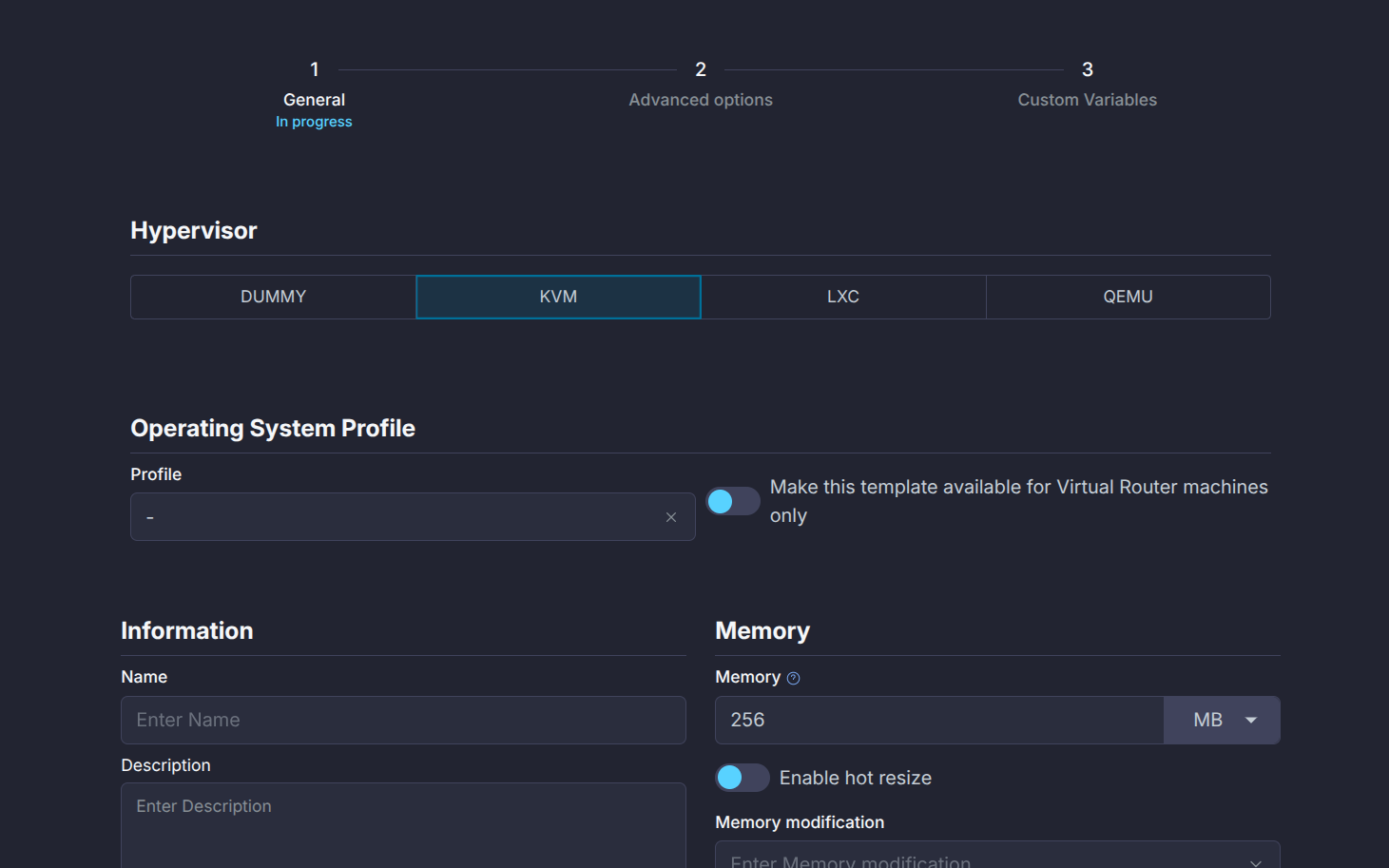

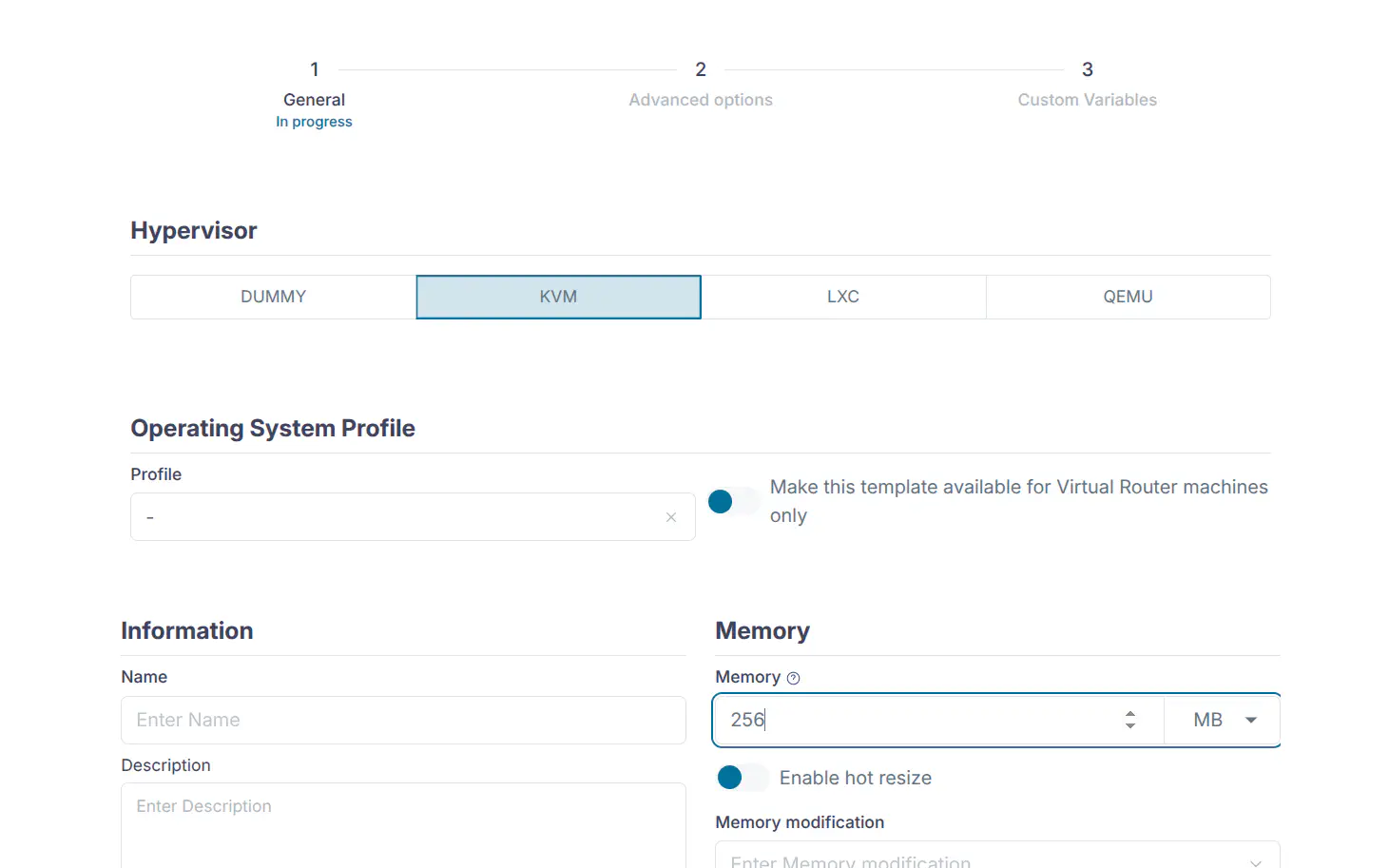

The profile can then be saved and accessed in Sunstone from the first step in the VM Templates Create/Update dialog:

Important

Sunstone also ships with a base.template file (found in the default profiles directory), which includes examples for majority of the inputs for a VM template. This base template should only be used as a reference when creating new profiles and not directly used as-is.

Profile Chain Loading

It’s also possible to chain-load profiles by referencing one profile from another. This allows you to combine snippets of profiles together more efficiently, combining different optimizations for specialized use cases.

Take for example the default Windows profile that ships with Sunstone:

---
# Windows profile
"General":
  NAME: "Optimized Windows Profile"

"Advanced options":
  OsCpu:
    OS:
      ARCH: X86_64
      SD_DISK_BUS: scsi
      MACHINE: host-passthrough
      FIRMWARE: BIOS
    FEATURES:
      ACPI: "Yes"
      PAE: "Yes"
      APIC: "Yes"
      HYPERV: "Yes"
      LOCALTIME: "Yes"
      GUEST_AGENT: "Yes"
      VIRTIO_SCSI_QUEUES: "auto"
      VIRTIO_BLK_QUEUES: "auto"
      # IOTHREADS:
    CPU_MODEL:
      MODEL: "host-passthrough"
        # FEATURES:
        # - Tunable depending on host CPU support
        # -
    RAW:
      DATA: |-
        <features>
          <hyperv>
            <evmcs state='off'/>
            <frequencies state='on'/>
            <ipi state='on'/>
            <reenlightenment state='off'/>
            <relaxed state='on'/>
            <reset state='off'/>
            <runtime state='on'/>
            <spinlocks state='on' retries='8191'/>
            <stimer state='on'/>
            <synic state='on'/>
            <tlbflush state='on'/>
            <vapic state='on'/>
            <vpindex state='on'/>
          </hyperv>
        </features>
        <clock offset='utc'>
          <timer name='hpet' present='no'/>
          <timer name='hypervclock' present='yes'/>
          <timer name='pit' tickpolicy='delay'/>
          <timer name='rtc' tickpolicy='catchup'/>
        </clock>
      VALIDATE: "Yes"

Now say you want to combine this profile with the basic profile from the previous section. Now you just add the OS_PROFILE attribute to the basic profile’s configuration and reference the other profile from it:

Note

The OS_PROFILE value being referenced should match the one on disk exactly, excluding the .yaml extension

---
# basic_profile.yaml
"General":
  NAME: "Example profile"
  OS_PROFILE: "windows_optimized"
  CPU: 4
  VCPU: 4
  MEMORY: 8
  MEMORYUNIT: "GB"

"Advanced options":
  Backup:
    BACKUP_CONFIG:
     MODE: "INCREMENT"
     INCREMENT_MODE: "CBT"
     BACKUP_VOLATILE: "Yes"
     FS_FREEZE: "AGENT"
     KEEP_LAST: 7

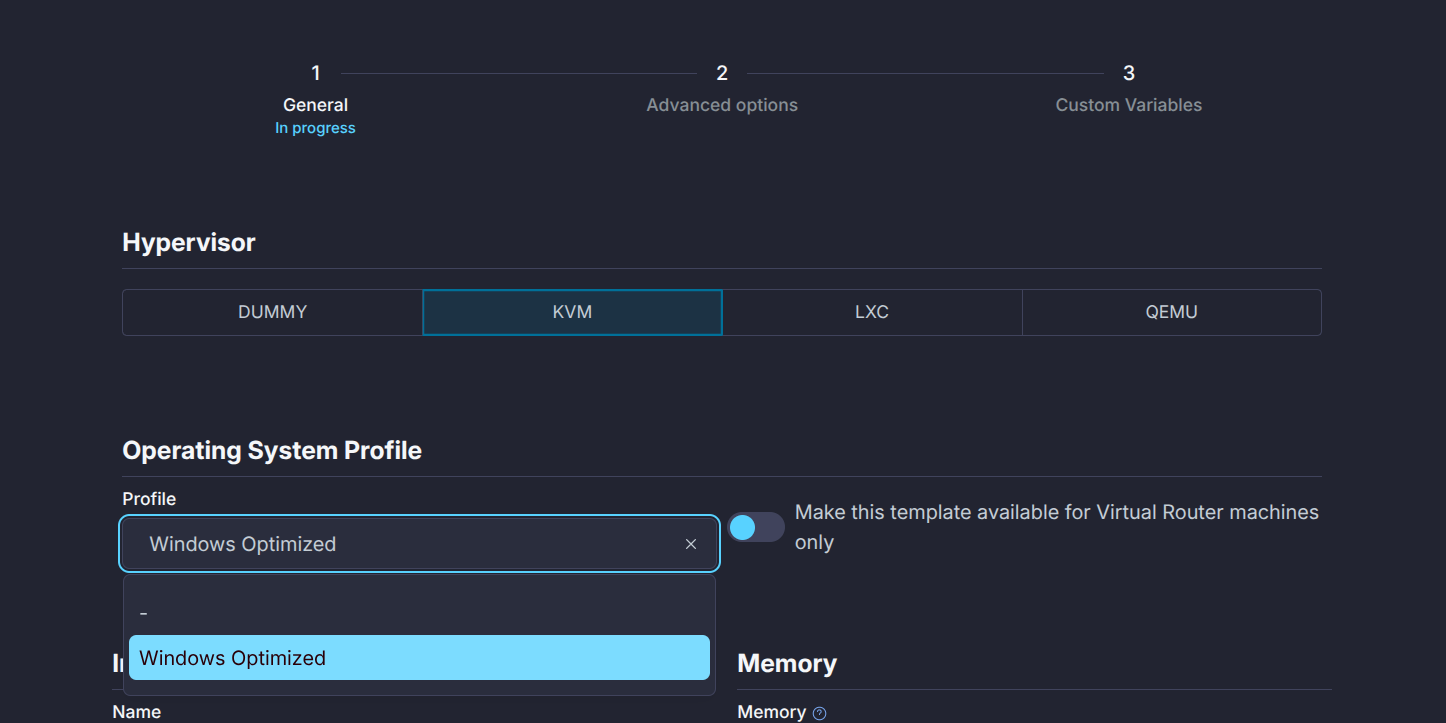

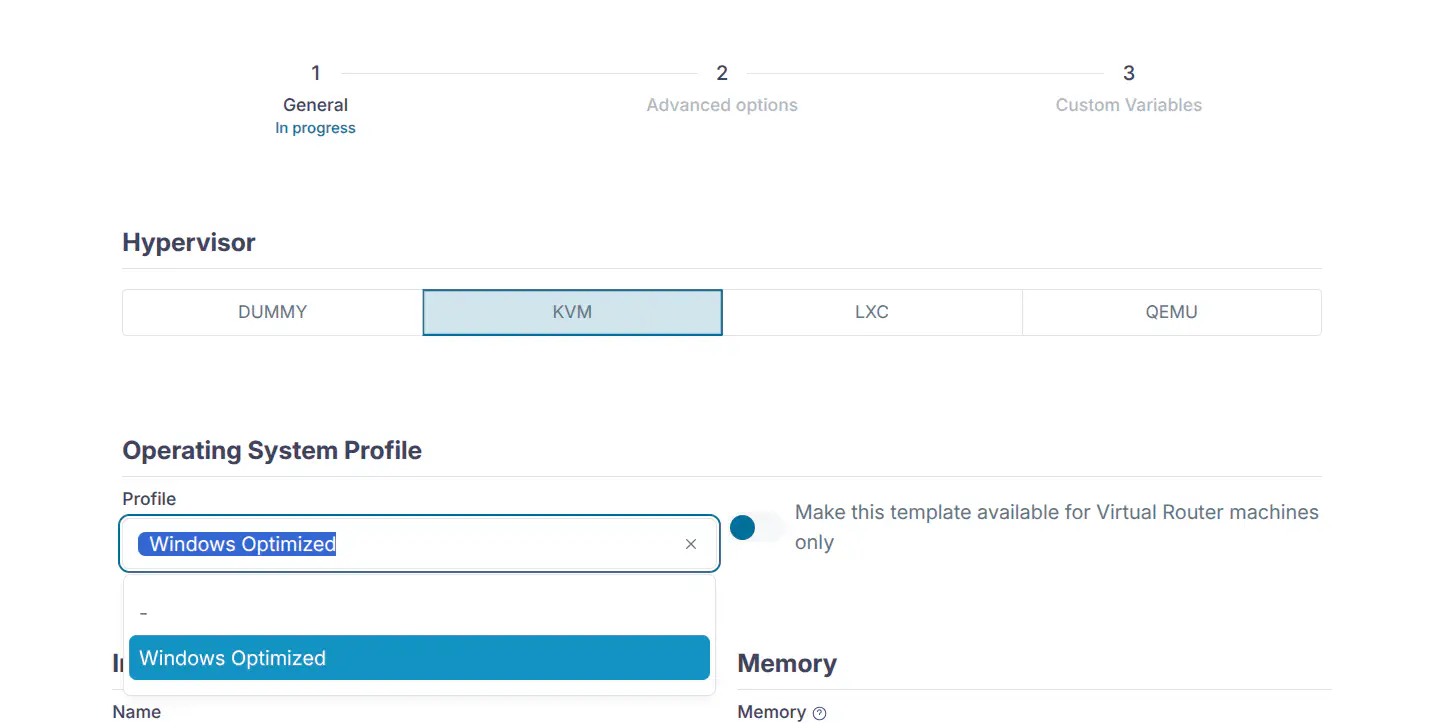

Sunstone now sequentially loads each profile and applies them on top of each other. This means that if two fields modify the same values, e.g., NAME, the last profile to modify that field will be used.

Profiles Schema

Note

All parent attributes are annotated in bold and child attributes are prefixed with a → depending on their level.

General Configuration

Field Name	Type	Description	Allowed Values
NAME	string	Template name	Any string
LOGO	string	Logo path	Any valid path or URL, e.g., “images/logos/linux.png”
HYPERVISOR	string	Type of hypervisor used	“kvm”, “lxc”, “qemu”
DESCRIPTION	string	Description of the configuration	Any string
VROUTER	boolean	Specifies if it’s a virtual router	“Yes”, “No”
OS_PROFILE	string	Operating system profile	Any string
AS_GID	string	Instantiate as Group ID	Any valid group ID
AS_UID	string	Instantiate as User ID	Any valid user ID
MEMORY_SLOTS	number	Number of memory slots	Any positive integer
MEMORY_RESIZE_MODE	string	Mode for resizing memory	“BALLOONING”, “HOTPLUG”
MEMORY_MAX	number	Maximum memory allocation	Any positive number
MEMORYUNIT	string	Memory measurement unit	“MB”, “GB”, “TB”
VCPU_MAX	number	Maximum number of virtual CPUs	Any positive integer
VCPU	number	Number of virtual CPUs allocated	Any positive integer
CPU	number	Number of CPUs allocated	Any positive number
MEMORY	number	Amount of memory allocated	Any positive number
DISK_COST	number	Cost associated with disk usage	Any positive number
CPU_COST	number	Cost associated with CPU usage	Any positive number
MEMORY_COST	number	Cost associated with memory usage	Any positive number
MODIFICATION		Resource Modification Settings
VCPU
→ max	number	Maximum value for virtual CPUs	Any positive integer
→ min	number	Minimum value for virtual CPUs	Any positive integer
→ options	array	Options for virtual CPUs	List of options
→ type	string	Type of virtual CPUs modification	“Any value”, “fixed”, “list”, “range”
CPU
→ max	number	Maximum value for CPUs	Any positive number
→ min	number	Minimum value for CPUs	Any positive number
→ options	array	Options for CPUs	List of options
→ type	string	Type of CPUs modification	“Any value”, “fixed”, “list”, “range”
MEMORY
→ max	number	Maximum memory allocation	Any positive number
→ min	number	Minimum memory allocation	Any positive number
→ options	array	Options for memory	List of options
→ type	string	Type of memory modification	“Any value”, “fixed”, “list”, “range”
HOT_RESIZE		Hot Resize Configuration
→ CPU_HOT_ADD_ENABLED	boolean	Enables hot-add functionality for CPU	“Yes”, “No”
→ MEMORY_HOT_ADD_ENABLED	boolean	Enables hot-add functionality for memory	“Yes”, “No”
VMGROUP		Virtual Machine Group Settings
→ ROLE	string	Role within the VM group	Any role identifier
→ VMGROUP_ID	string	Identifier for the VM group	Any valid VM group ID

Advanced Options

All configuration options are grouped by tab.

Storage Configuration

Field Name	Type	Description	Allowed Values
Storage		Storage Configuration
→ DISK	array	List of disk configurations
→→ NAME	string	Disk identifier	Any string (e.g., “DISK1”, “DISK2”)
→→ CACHE	string	Cache mode	“none”, “default”, “unsafe”, “writethrough”, “writeback”, “directsync”
→→ TARGET	string	Target device	Any string (e.g., “sdc”)
→→ DEV_PREFIX	string	Device prefix (BUS)	“vd”, “sd”, “hd”, “xvd”, “custom”
→→ DISCARD	string	Discard mode	“ignore”, “unmap”
→→ IMAGE	string	Name of the image	Any string, should match the image ID
→→ IMAGE_ID	number	ID of the image	Any positive integer, should match the image name
→→ IO	string	IO policy	“native”, “threads”, “io_uring”
→→ IOTHREADS	number	Number of IO threads	Any positive integer
→→ READONLY	boolean	Read-only flag	“Yes”, “No”
→→ READ_BYTES_SEC	number	Read bytes per second	Any positive number
→→ READ_BYTES_SEC_MAX	number	Max read bytes per second	Any positive number
→→ READ_BYTES_SEC_MAX_LENGTH	number	Time period for max read bytes/sec	Any positive number
→→ READ_IOPS_SEC	number	Read IO operations per second	Any positive number
→→ READ_IOPS_SEC_MAX	number	Max read IO operations per second	Any positive number
→→ READ_IOPS_SEC_MAX_LENGTH	number	Time period for max read IOPS/sec	Any positive number
→→ RECOVERY_SNAPSHOT_FREQ	number	Snapshot frequency for recovery	Any positive integer
→→ SIZE	number	Size of the disk in MB	Any positive number
→→ SIZE_IOPS_SEC	number	Size of IO operations per second	Any positive number
→→ TOTAL_BYTES_SEC	number	Total bytes per second	Any positive number
→→ TOTAL_BYTES_SEC_MAX	number	Max total bytes per second	Any positive number
→→ TOTAL_BYTES_SEC_MAX_LENGTH	number	Time period for max total bytes/sec	Any positive number
→→ TOTAL_IOPS_SEC	number	Total IO operations per second	Any positive number
→→ TOTAL_IOPS_SEC_MAX	number	Max total IO operations per second	Any positive number
→→ TOTAL_IOPS_SEC_MAX_LENGTH	number	Time period for max total IOPS/sec	Any positive number
→→ WRITE_BYTES_SEC	number	Write bytes per second	Any positive number
→→ WRITE_BYTES_SEC_MAX	number	Max write bytes per second	Any positive number
→→ WRITE_BYTES_SEC_MAX_LENGTH	number	Time period for max write bytes/sec	Any positive number
→→ WRITE_IOPS_SEC	number	Write IO operations per second	Any positive number
→→ WRITE_IOPS_SEC_MAX	number	Max write IO operations per second	Any positive number
→→ WRITE_IOPS_SEC_MAX_LENGTH	number	Time period for max write IOPS/sec	Any positive number

Network Configuration

Note

NICs are configured under Network→NIC and PCI devices under Network→PCI

Field Name	Type	Description	Allowed Values
Network		Network Configuration
→ NIC \| PCI	array	List of NIC or PCI configurations
→→ NAME	string	Name of the network interface	Any string
→→ GATEWAY	string	Default gateway	Valid IPv4 address
→→ GATEWAY6	string	Default IPv6 gateway	Valid IPv6 address
→→ GUEST_MTU	number	Guest MTU setting	Any number (e.g., 1500)
→→ INBOUND_AVG_BW	number	Inbound average bandwidth	Any positive number
→→ INBOUND_PEAK_BW	number	Inbound peak bandwidth	Any positive number
→→ INBOUND_PEAK_KB	number	Inbound peak kilobytes	Any positive number
→→ IP	string	IP address	Valid IPv4 address
→→ IP6	string	IPv6 address	Valid IPv6 address
→→ IP6_METHOD	string	IPv6 configuration method	“auto”, “dhcp”, “static”
→→ MAC	string	MAC address	Valid MAC address
→→ METHOD	string	IP configuration method	“auto”, “dhcp”, “static”
→→ MODEL	string	Model of the network interface	Any string
→→ NETWORK_ADDRESS	string	Network address	Valid network address
→→ NETWORK_MASK	string	Network mask in dot notation (“255.0.0.0”).	Valid subnet mask
→→ NETWORK_MODE	string	Network mode	“auto”, “manual”, etc.
→→ OUTBOUND_AVG_BW	number	Outbound average bandwidth	Any positive number
→→ OUTBOUND_PEAK_BW	number	Outbound peak bandwidth	Any positive number
→→ OUTBOUND_PEAK_KB	number	Outbound peak kilobytes	Any positive number
→→ PCI_TYPE	string	PCI type	“NIC”, “PCI”, “emulated”
→→ RDP	boolean	Enable RDP	“Yes”, “No”
→→ RDP_DISABLE_AUDIO	boolean	Disable RDP audio	“Yes”, “No”
→→ RDP_DISABLE_BITMAP_CACHING	boolean	Disable RDP bitmap caching	“Yes”, “No”
→→ RDP_DISABLE_GLYPH_CACHING	boolean	Disable RDP glyph caching	“Yes”, “No”
→→ RDP_DISABLE_OFFSCREEN_CACHING	boolean	Disable RDP offscreen caching	“Yes”, “No”
→→ RDP_ENABLE_AUDIO_INPUT	boolean	Enable RDP audio input	“Yes”, “No”
→→ RDP_ENABLE_DESKTOP_COMPOSITION	boolean	Enable desktop composition in RDP	“Yes”, “No”
→→ RDP_ENABLE_FONT_SMOOTHING	boolean	Enable font smoothing in RDP	“Yes”, “No”
→→ RDP_ENABLE_FULL_WINDOW_DRAG	boolean	Enable full window drag in RDP	“Yes”, “No”
→→ RDP_ENABLE_MENU_ANIMATIONS	boolean	Enable menu animations in RDP	“Yes”, “No”
→→ RDP_ENABLE_THEMING	boolean	Enable theming in RDP	“Yes”, “No”
→→ RDP_ENABLE_WALLPAPER	boolean	Enable wallpaper in RDP	“Yes”, “No”
→→ RDP_RESIZE_METHOD	string	RDP resize method	“display-update”, “reconnect”
→→ RDP_SERVER_LAYOUT	string	RDP server keyboard layout	e.g., “en-us-qwerty”
→→ SSH	string	Enable SSH	“Yes”, “No”
→→ VIRTIO_QUEUES	number	Number of VirtIO queues	Any positive integer
→→ TYPE	string	Set to “NIC” or “PCI” to specify device type	“NIC”, “PCI”

OS and CPU Configuration

Field Name	Type	Description	Allowed Values
OsCpu		OS and CPU Configuration
→OS		Operating System configuration
→→ ARCH	string	Architecture	“x86_64”, “i686”
→→ SD_DISK_BUS	string	SD disk bus type	“scsi”, “sata”
→→ MACHINE	string	Machine type	Dependent on Host support
→→ FIRMWARE	string	Firmware type	“BIOS”, “UEFI” & Host supported e.g., “/usr/share/AAVMF/ AAVMF_CODE.fd”
→→ FIRMWARE_FORMAT	string	Firmware desired format	“qcow2“, “raw“ (default)
→→ BOOT	string	Boot device order	Comma-separated list e.g., “disk0,disk1,nic0”
→→ KERNEL	string	Kernel image path	Any valid path
→→ KERNEL_DS	string	Kernel file reference	e.g., $FILE[IMAGE_ID=123]
→→ INITRD	string	Initrd image path	Any valid path
→→ INITRD_DS	string	Initrd file reference	e.g., $FILE[IMAGE_ID=456]
→→ ROOT	string	Root device identifier	Any string
→→ FIRMWARE_SECURE	boolean	Enable secure firmware	“Yes”, “No”
→→ KERNEL_CMD	string	Kernel command-line parameters	Any string
→→ BOOTLOADER	string	OS bootloader	Any valid path
→→ UUID	string	Operating system UUID	Any string
→FEATURES		Virtualization Features
→→ ACPI	boolean	ACPI setting	“Yes”, “No”
→→ PAE	boolean	PAE setting	“Yes”, “No”
→→ APIC	boolean	APIC setting	“Yes”, “No”
→→ HYPERV	boolean	Enable Hyper-V features	“Yes”, “No”
→→ LOCALTIME	boolean	Synchronize guest time with Host	“Yes”, “No”
→→ GUEST_AGENT	boolean	Enable guest agent	“Yes”, “No”
→→ VIRTIO_SCSI_QUEUES	string	Virtio SCSI queues configuration	“auto” or positive integer
→→ VIRTIO_BLK_QUEUES	string	Virtio block queues configuration	“auto” or positive integer
→→ IOTHREADS	number	Number of IO threads	Any positive integer
→CPU_MODEL		CPU Model Configuration
→→ MODEL	string	Specific CPU model	“host-passthrough”, “core2duo”, etc.
→→ FEATURES	array	CPU model features	List of features
→RAW		Raw Configuration Data
→→ TYPE	string	Type of raw data	“kvm”, “qemu”
→→ DATA	string	Raw configuration data	Any string
→→ VALIDATE	boolean	Validate raw data against libvirt schema	“Yes”, “No”

PCI Configuration

Field Name	Type	Description	Allowed Values
PciDevices		PCI Device Configuration
→PCI	array	PCI Configuration
→→ NAME	string	PCI device identifier	PCI + ID, e.g., PCI1, PCI2
→→ CLASS	string	PCI class code of the device	Hexadecimal string
→→ DEVICE	string	PCI device ID	Hexadecimal string
→→ VENDOR	string	PCI vendor ID	Hexadecimal string
→→ SHORT_ADDRESS	string	PCI address of the device	Hexadecimal string

Input/Output Configuration

Field Name	Type	Description	Allowed Values
InputOutput		Input/Output Configuration
→ VIDEO		Video Configuration
→→ TYPE	string	Type of video device	“auto”, “cirrus”, “none”, “vga”, “virtio”
→→ VRAM	number	Video RAM allocation in KB	Any positive integer
→→ RESOLUTION	string	Video resolution	e.g., “1280x720”
→→ IOMMU	boolean	Enable IOMMU support	“Yes”, “No”
→→ ATS	boolean	Enable Address Translation Service	“Yes”, “No”
→ INPUT	array	Input Device Configurations
→→ BUS	string	Bus type for input device	“ps2”, “usb”
→→ TYPE	string	Type of input device	“mouse”, “tablet”
→ GRAPHICS		Graphics Configuration
→→ TYPE	string	Type of graphics interface	“VNC”
→→ LISTEN	string	Graphics listen address	Valid IP address or hostname
→→ PORT	string	Graphics access port	Any valid port number
→→ KEYMAP	string	Keymap configuration	e.g., “en-us”
→→ PASSWD	string	Graphics access password	Any string
→→ RANDOM_PASSWD	boolean	Use random password for graphics access	“Yes”, “No”
→→ COMMAND	string	Custom graphics command	Any string

Context Configuration

Field Name	Type	Description	Allowed Values
Context		Contextualization Configuration
→ CONTEXT	mapping	Context Variables
→→ SSH_PUBLIC_KEY	string	SSH public key for the VM	Any string e.g., “$USER[SSH_PUBLIC_KEY]”
→→ START_SCRIPT	string	Start script content (plain or base64)	Any string
→→ NETWORK	string	Include network context	“Yes”, “No”
→→ TOKEN	string	Include authentication token	“Yes”, “No”
→→ REPORT_READY	string	Report readiness to the system	“Yes”, “No”
→→ INIT_SCRIPTS	array	Initialization scripts	List of script names
→→ FILES_DS	string	Files from datastore (space-separated)	Any string
→→ Custom Context Variables	mapping	User-defined context variables	e.g., CUSTOM_VAR: “123”
→ USER_INPUTS	array	Array of User Input Definitions
→→ name	string	Name of the user input	Any string
→→ mandatory	boolean	Whether the input is mandatory	true, false
→→ type	string	Type of the input	“password”, “list”, “listMultiple”, “number”, “numberFloat”, “range”, “rangeFloat”, “boolean”
→→ label	string	Label or description of the input	Any string
→→ options	array	List of options for selection inputs	List of strings
→→ default	string	Default value of the input	Any string
→→ min	string	Minimum value (for numeric inputs)	Any number
→→ max	string	Maximum value (for numeric inputs)	Any number

Scheduled Actions Configuration

Field Name	Type	Description	Allowed Values
ScheduledAction		Scheduled Actions Configuration
→ SCHEDULED_ACTION	array	Array of scheduled action definitions
→→ NAME	string	Name of the scheduled action	Any string
→→ ACTION	string	Action to be performed	“backup”, “terminate” “terminate-hard”, “undeploy”, “undeploy-hard”,”hold”, “release”,”stop”, “suspend”,”resume”, “reboot”,”reboot-hard”, “poweroff”, “poweroff-hard”, “snapshot-create”, “snapshot-revert”, “snapshot-delete”, “disk-snapshot-create”, “disk-snapshot-rename”, “disk-snapshot-revert”
→→ ARGS	string	Arguments for the action	Depends on ACTION
→→ TIME	number	Scheduled time in Unix timestamp	Positive integer
→→ REPEAT	string	Type of repetition	0: weekly 1: monthly 2: yearly 3: hourly
→→ DAYS	string	Days of the week for repeating actions	Comma-separated list of numbers (0 to 6)
→→ END_TYPE	string	Type of end condition	0: never 1: repetition 2: date
→→ END_VALUE	number	Value associated with END_TYPE	Depends on END_TYPE

Placement Configuration

Field Name	Type	Description	Allowed Values
Placement		Placement Configuration
→ SCHED_DS_RANK	string	Datastore scheduling rank expression	“FREE_MB”, “-FREE_MB”
→ SCHED_DS_REQUIREMENTS	string	Datastore scheduling requirements	Expression string
→ SCHED_RANK	string	Host scheduling rank expression	“FREE_CPU”, “RUNNING_VMS”, “-RUNNING_VMS”
→ SCHED_REQUIREMENTS	string	Host scheduling requirements	Expression string

NUMA Topology Configuration

Field Name	Type	Description	Allowed Values
NUMA		NUMA Configuration
→ TOPOLOGY		NUMA Topology Settings
→→ CORES	number	Number of cores per socket	Any positive integer
→→ THREADS	number	Number of threads per core	Any positive integer
→→ SOCKETS	number	Number of sockets	Any positive integer
→→ HUGEPAGE_SIZE	string	Size of hugepages in MB	“2”, “1024”
→→ MEMORY_ACCESS	string	Memory access mode	“private”, “shared”
→→ PIN_POLICY	string	NUMA pinning policy	“NONE”, “THREAD”, “SHARED”, “CORE”, “NODE_AFFINITY”
→→ NODE_AFFINITY	string	Preferred NUMA node(s)	Comma-separated list of node IDs

Backup Configuration

Field Name	Type	Description	Allowed Values
BACKUP		Backup Configuration
→ BACKUP_CONFIG		Backup Settings
→→ MODE	string	Backup mode	“FULL”, “INCREMENT”
→→ INCREMENT_MODE	string	Incremental backup method	“CBT”, “SNAPSHOT”
→→ BACKUP_VOLATILE	string	Include volatile disks in backup	“Yes”, “No”
→→ FS_FREEZE	string	Filesystem freeze method	“NONE”, “AGENT”, “SUSPEND”
→→ KEEP_LAST	number	Number of backups to keep	Any positive integer
→→ DISK_IDS	string	Disk IDs to back up	Comma-separated disk IDs

GIVE FEEDBACK

Was this resource helpful?

Glad to hear it

Sorry to hear that
